Semi-Automatic Air Jet Vacuum Cleaning Machine

The Semi-Automatic Air Jet Vacuum Cleaning Machine consists of the main structure, Ionizer, Air Nozzle, and Vacuum Suction Blower.

The machine is manufactured or developed accordance with GMP standards.
The structure is made of SS 304.
Rigid vibration free construction for trouble-free performance.
Contact parts are made of SS 316.
Two nos. of nozzle for cleaning of bottles.

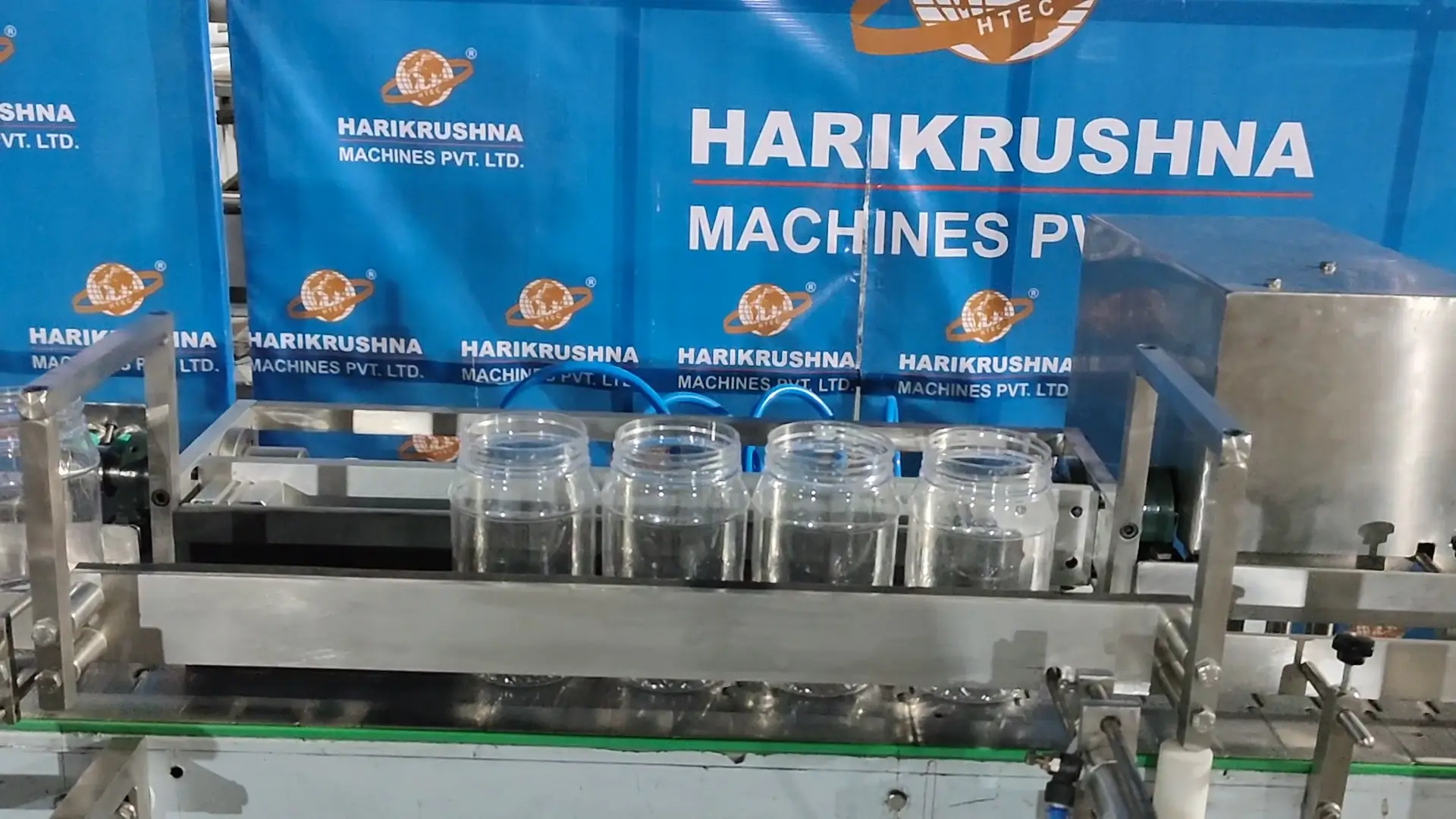

Bottles loaded manually on the bottle holder.
Pressure regulator with pressure switch optionally provided.
Adjustable height of the cleaning unit based on the height of the bottles/containers.
User-friendly and very less maintenance required.
Machine is given with very high velocity of air, effective cleaning of containers.
Machine with foot-operated switch.
Machine is given with inbuilt vacuum blower to suck loosened particles from the inner surface of the container.
Most reliable and proven components such as Festo/SMC/Janatics make pneumatic and electrical/electronic such as Bonfiglioli/Motovario/Rotomotive make AC motor, MCB & relay “CE” make.

Model	HMPL–SAVC
Product Samples	Round/Flat Glass/PET Bottles/Jars
Output Speed	Up to 20 Jars/Minute (Speed depends on operator & manual loading unloading)
Cleaning System	Air Clean
Working Height	875 ± 50 mm Adjustable.
Power Supply	Single Phase / 230 V AC / 50 Hz
Air Consumption	5 CFM 4 to 6 Kg/Cm² (Customer’s Scope)
Air Filter:	5 micron with auto drain
Mist Separator:	0.3 micron with auto drain
Ionized Air:	High flow rate ionized air nozzle
Net Weight Approx.:	150 Kg
Dimensions Approx.	580 mm L x 580 mm W x 850 ± 50 mm (H)
Change Parts	Bottle Holder

* Approximate data / loading levels may change depending on tablets shape and density
